Autonomous Quality Inspection AI & 360° Sidewall OCR

Automate regulatory compliance, serialized tire traceability, and conveyor sorting at line speed. YAFE 360° Sidewall OCR unwraps curved tire surfaces to read embossed DOT, TIN, plant codes, and mold IDs in under 400ms — eliminating manual inspection bottlenecks with 99.8% read accuracy.

< 400ms Scan Latency
99.8% Read Accuracy
15k+ Tyres / Day
100% Traceability
Watch the 360° Tyre Sidewall OCR Video
SIDEWALL OCR LIVE STREAM #02 320 RPM • GIGE VISION • 60 FPS
DOT TIN Read DOT 042 AU0000 2522
Compliance Check PASSED • 100% MATCH
Conveyor Sorter ARM READY (<15ms)
15,000+ Tyres Inspected Daily / Line
< 400ms 360° Sidewall Cycle Time
99.8% Read Rate on Low-Contrast Rubber
100% DOT • E-Mark • BIS Compliant

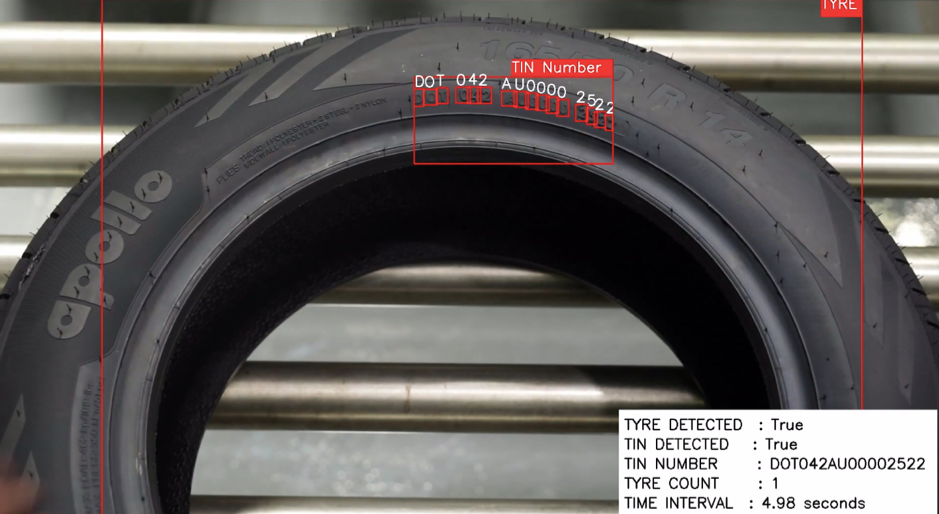

YAFE DOT Code Validation and curved sidewall OCR bounding box inspection on Apollo tire
Apollo Tyres Finishing Cell • Live DOT Detection Active
360° CURVED SIDEWALL OCR

Sub-Second Character Segmentation on High-Speed Rotating Tyres

Reading embossed, black-on-black rubber characters on a rapidly spinning curved tire sidewall is one of the most demanding challenges in industrial computer vision. YAFE Quality Inspection AI solves this with synchronized multi-angle strobe illumination and proprietary polar unwrapping neural models.

✓
Curved Sidewall Coordinate Unwrapping: Mathematical coordinate transformation flattens 360-degree curved tire geometries into linear pixel arrays in under 35ms.
✓
Low-Contrast Embossed Rubber AI: Classifies black alphanumeric characters against black vulcanized rubber with tolerance for mold flash, rubber bloom, and surface dirt.
✓
Real-Time Schedule Validation: Instantly compares extracted Plant Codes, Size Codes, and Date Codes (WWYY) against factory MES production work orders.
✓
Sub-15ms Conveyor Diverter Trigger: Direct fieldbus signal trips pneumatic diverter flippers to isolate unreadable, expired, or non-conforming tires automatically.
